20 Apr 2015
Google Direction API for Android

Google Direction API for Android

In the previous article (https://codevog.com/blog/2015-04-06-google-maps-api-for-android) we demonstrated how you can start work with GoogleMaps and do amazing things there. In this article we would like to tell you about Google Directions API.

The Google Directions API is a service that calculates directions between locations using an HTTP request. Service provides different parameters for HTTP request. This API is designed for calculating directions for static addresses, and not designed to use it for real-time user input.

 How to use Google Directions API

1) Create API Key for your application in Google Developers Console.

It was described in the previous article. We showed how to create API Key for a project and start working with maps. Our sample project for this tutorial is based on the sample for a preceding tutorial.

2) Note that you should to enable Directions API for your application. Google Maps Android API v2 was enabled in the previous tutorial.




 Pic. 1. Enabled Directions API

3) Http request to Directions API.

Request parameters.

You can access the Directions API over HTTP and HTTPS. Request takes the next form:

https://maps.googleapis.com/maps/api/directions/output?parameters

Be aware, that output can be json or xml format.

Request parameters:

  • origin – the address from which we want to calculate  directions (demonstrated in the sample project);
  • destination – the address to which we want to calculate directions (demonstrated in the sample project).

Optional parameters:

  • mode – you can set the mode of transport (demonstrated in the sample project),
  • waypoints – you can set array of waypoints (demonstrated in the sample project),
  • alternatives – not used in the sample project,
  • avoid – not used in the sample project,
  • language – not used in the sample project,
  • Units – not used in the sample project,
  • region – not used in the sample project,
  • departure_time – not used in the sample project,
  • arrival_time – not used in the sample project,
  • transit_mode – not used in the sample project,
  • transit_routing_preference – not used in the sample project.

Route optimization.

When you set waypoints, you should describe optimize parameter value.

In our sample we used this option. If optimize is true, service will try to optimize the way, otherwise the way will be build point-by-point.

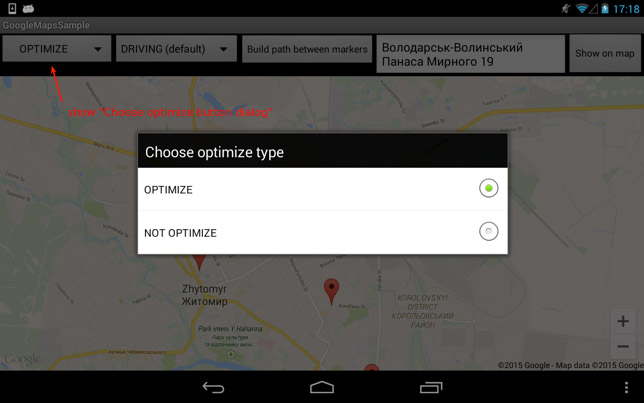

Pic. 2. “Choose Optimize Type” Dialog

After optimize type selection please press “Build path between markers” button.

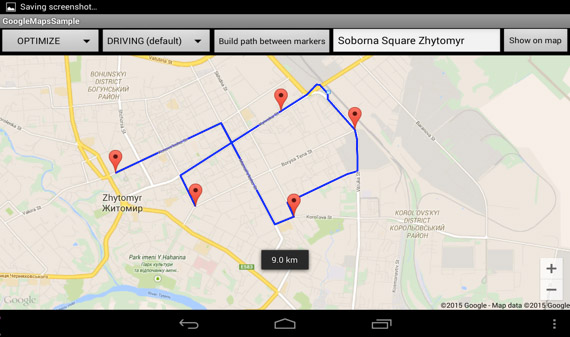

Pic. 3. Path Between Markers When Optimize is True

Pic. 3 shows how the service builds a path when optimize is true. Note that the way distance is 9.0 km.

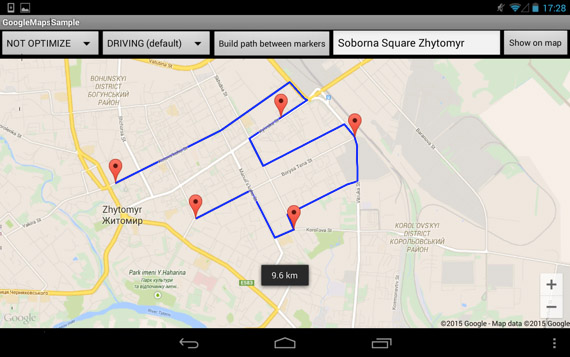

 Pic. 4. Path Between Markers When Optimize is False

On Pic. 4 we can see another way and a longer distance (9.6), because we set the optimize parameter as false.

Travel Modes.

Google Directions API provides different travel modes as a request parameter.

There are following travel modes:

  • driving (default),
  • walking,
  • bicycling,
  • transit.(requests directions via public transit routes).

For switching a travel mode in the sample application, you should press on the second spinner view. Then choose the necessary travel mode in the appeared dialog (Pic. 5).

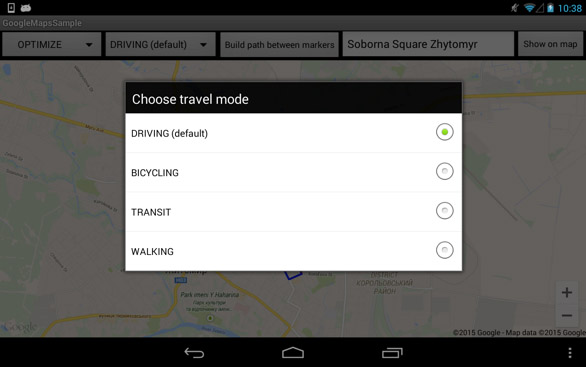

Pic. 5. Choose Travel Mode Dialog



We showed how the application builds path for “driving” mode in the previous screenshot (see Pic. 4). It is noticeable, that in a “walking” mode the application has built another way with 8.0 km distance (Pic. 6).

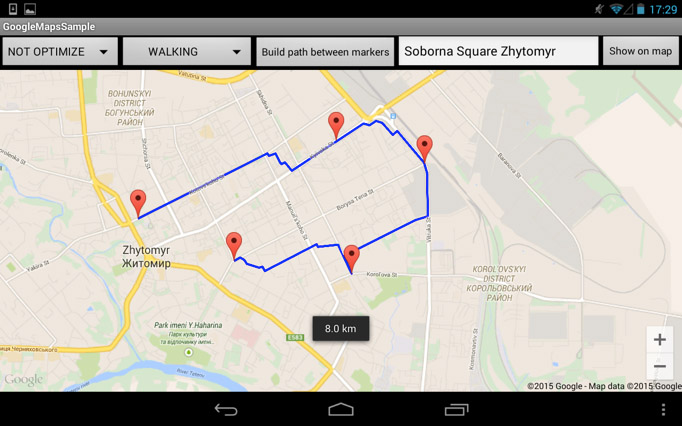

Pic. 6. Path Between Markers When the “Walking” Travel Mode is Used



Unfortunately, “bicycling” and “transit” ways are not available in Ukraine, but it can be available for your location. You may check the map coverage details here: https://developers.google.com/maps/coverage.

We implemented GoogleDirectionApiRequestBuilder class for the request creation. Our builder does not cover all the diversity of requests, but you can extend this functionality according to your needs.

How to find a location by address.

We added another one useful feature to our sample project. In nutshell a user described an address as a string and the application shows this address location on the map as a marker.

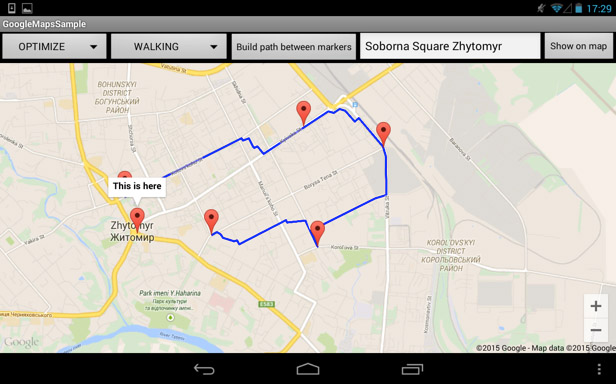

Pic.7. Find Location by Address Demonstration

Pic. 7 demonstrates this functionality. User typed the address in EditText above map (Soborna Square Zhytomyr) and pressed “Show on map” button. The application showed the address location with a marker, which signed the following text (“This is here”).

Be aware, that service can return several locations in response if you describe the address not thoroughly enough, because, for example, some street names may coincide in different places.

There is short code snippet for this functionality:

Geocoder geocoder = new Geocoder(getActivity());
List<Address> addressList = geocoder.getFromLocationName(locationName, 5);
double lat = addressList.get(0).getLatitude();
double lng = addressList.get(0).getLongitude();
LatLng latLng = new LatLng(lat, lng);



How to get an address by location.

You can also get to know the address of a selected location. To ensure this, please, press on any marker and the application shows the toast message with address text (Pic. 8).



Pic 8. Marker Location Demonstration

The following code snippet shows how this works:

private String getCompleteAddressString(double LATITUDE, double LONGITUDE) {
        String strAdd = "";
        Geocoder geocoder = new Geocoder(getActivity(), Locale.getDefault());
        try {
            List<Address> addresses = geocoder.getFromLocation(LATITUDE, LONGITUDE, 1);
            if (addresses != null) {
                Address returnedAddress = addresses.get(0);
                StringBuilder strReturnedAddress = new StringBuilder("");

                for (int i = 0; i < returnedAddress.getMaxAddressLineIndex(); i++) {
                    strReturnedAddress.append(returnedAddress.getAddressLine(i)).append("\n");
                }
                strAdd = strReturnedAddress.toString();
                Log.w("My Current location address", "" + strReturnedAddress.toString());
            } else {
                Log.w("My Current location address", "No Address returned!");
            }
        } catch (Exception e) {
            e.printStackTrace();
            Log.w("My Current location address", "Can not get Address!");
        }
        return strAdd;
    }

So, we described several very helpful capabilities of Google Directions API, but this service is much broader. You can download the sample project here (link). For quality theory basements learning we recommend to use Google documentation (https://developers.google.com/maps/documentation/directions/#Limits)

Thanks!
